Target Wake Time – HE MAC Capabilities Settings

Posted by vivekananda holla 1 Comment

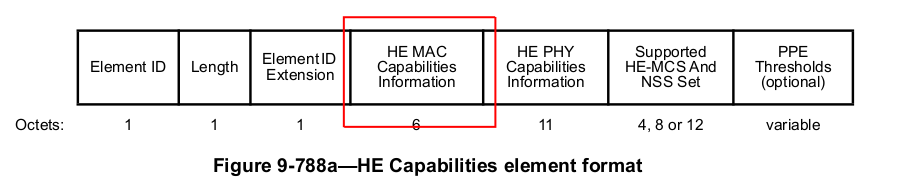

An High Efficiency 802.11ax station will set the following in its HE Capability Information Element field

FIG Courtesy: 802.11ax Standard
FIG Courtesy: 802.11ax Standard
ParameterDescription

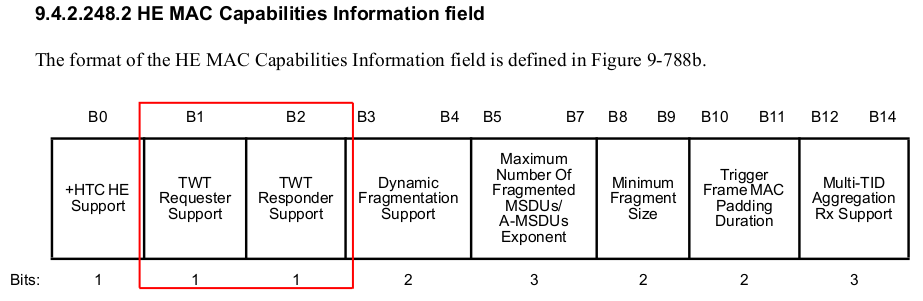

TWT Requester SupportSet to 1 if dot11TWTOptionActivated is true and the STA supports TWT requesting STA functionality

Set to 0 otherwise.
TWT Responder SupportSet to 1 if dot11TWTOptionActivated is true and the STA supports TWT responder STA functionality

Set to 0 otherwise.
An AP sets the TWT Responder Support subfield to 1.
FIG Courtesy: 802.11ax Standard
ParameterDescription

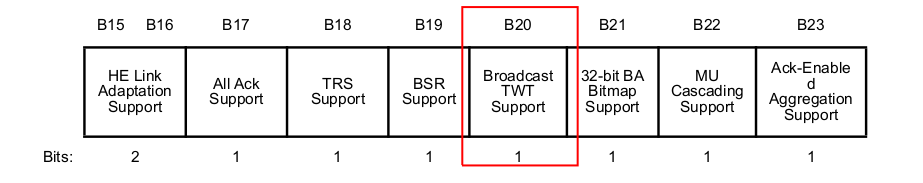

Broadcast TWT SupportSet to 1 if the STA supports broadcast TWT
functionality.
Set to 0 otherwise.

An Access Point will set the

  1. TWT Responder Support subfield in the HE capabilities element shown above and

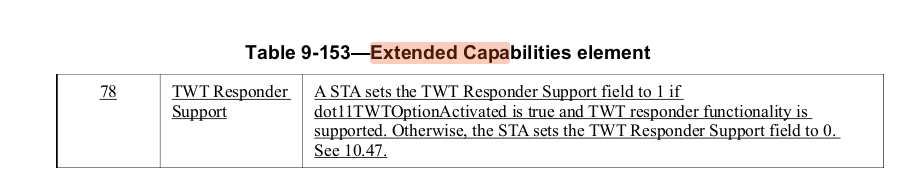

  2. Set the TWT Responder Support Subfield of the Extended Capabilities element
FIG Courtesy: 802.11ax Standard

TWT Element, TWT Information Field and TWT Parameter Set field
